Top and Bottom Feed Heavy Duty Lockstitch Machine with Side Cutter and Tape Binder

Unit Price: USD 20000.0000 / Set/Sets
Payment Type: T/T,Western Union
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 7 Days

Basic Info

Model No.: FX-0312B

Material: Metal

Processing Level: Super Precision Finishing

Mechanical Process: CNC

Processing Trade: Processing with Imort Material

Certification: CE, ISO9001: 2000

Customized: Customized

Condition: New

Iron Free Pocket Sewing Machine: Automatic Pocket Sewing Machine

Additional Info

Packaging: Wooden Case

Productivity: 100 Set/Year

Brand: FOXSEW

Transportation: Ocean

Place of Origin: Zhejiang, China

Certificate: CE

Product Description

FOXSEW Top and Bottom Feed Heavy Duty Lockstitch Sewing Machine with Edge Cutter and Tape Binder

Applicable to common sewing (ex-heavy materials) such as Leather, leatherette, canvas, mattress, sofas, seat, car Upholstery, cushions, luggage, bags, widely used in Jeans, Leather, Artificial Leather, Canvas, Cushion, Sofa, Bags, etc...

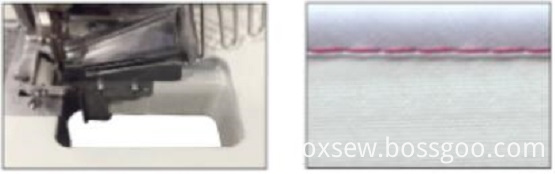

the special designed device enables the machine to stitch, edge cutting, tape binding, and clear chips simultaneously for high efficiency and high quality. It is designed with a wide chip chute of 53x110mm and and edge cutting knife synchronized with the inner presser foot, its maximum thickness to be cut is 7mm. The standard width to be cut is 8mm, and the standard tape binding width is 26mm. The satisfied tape binding effect can be obtained by selecting proper tape binders.

Characteristics:
1) Needle bar linkage up and bottom feed structure and presser foot alternating elevation to ensure smooth feed.
2) Adopt big hook to save the time of bottom line changing.
3) Automatic lubrication system, maximum speed up to 2200 rpm
4) New sewing structure to ensure low tension sewing.
5) Automatic sealed lubrication in elevation axis and swing axis in presser foot. Heighten design in rear cover to avoid oil leakage.



Specifications:

Model NO.:  FX-0312B
Sewing Speed:  2200 r.p.m
Needle Type:  DPx17 18#-24#
Stitch Length:  8-10 mm
Presser foot lift:  7-13 mm
Packing Size:  58x26x53 CM
Weight:  30/35 KGS
